Object Orientated Design:
I have found object orientated programming a very enjoyable programing paradigm.  The program is easily maintained and extendable.  The programming language helps to structure the program.  Also the programming language is very flexible.

Aspects of OOP that are particularly useful are:

• Classes and Objects
Classes are the abstraction, while objects are related to the real world concretely.  Each object is an unique member of a class.  Classes permit describing the system in global terms with out worrying about the implementation.
• Encapsulation
Wrapping data and methods within classes in combination with implementation hiding is often called encapsulation. The result is a data type with characteristics and behaviors.  Classes can encapsulated other classes in the data fields.  This implies that programmer clearly delineate access, public/private.  This guarantees that the implementation can freely modify private methods and data without breaking the users code.  Note that encapsulation defines both knowledge (data) and behavior (methods).

Objects collaborate between them selves by sending messages to each other.  The object sending the message called the client and object providing information is called the server.  Note that the client does not know how the server provides the service.

A physical picture of  a class and encapsulation is a doughnut with the circumference of the doughnut representing the public method/interface and private methods and fields contained inside the doughnut, encapsulated.

Encapsulation of a class by instantiation of a class in another class.  This is frequently called composition.

Sometimes it is convenient to have two objects communicate without using a class encapsulating the two object.  This is can be done by provide references to the two communicating class in each other class definition.  This technique is not strictly composition.  The technique is not preferred by software engineers because it leads to tightly coupled code.  The two classes can not exist independently and this may not be clear to a client.


• Hierarchy/Inheritance
Inheritance provides a means to be more specific or too add features to a class without touching or even knowing how the original class is implemented.

The more general class, typically the class with fewer methods and field, is called the base or super class.  The class derived from the super class, generally the more specific class, is frequently called the derived or sub class.

We can determine weather to use encapsulation or inheritance by asking ourselves is-a or has-a object?  Is-a implies inheritance and has-a implies encapsulation.


• Abstract/Interface Classes
Abstract classes are classes that are never instantiated. They are useful for defining commonality.  Interfaces are also a contract to client of the minimum set of services he can expect from a class that implements or extends the interface.
• Polymorphism
Random House Definition: having, assuming, or passing through many or various forms, stages, or the like.

In OOP common method names execute differently depending on the client.  This allows large section of code to be written in terms of the base class methods without worrying about the specific derived classes.  Then as new derived classes are added we do not have to rewrite the code that uses the base class.


• Frameworks and Patterns
Design patterns and frameworks are standard techniques to solve problems or design programs.  Patterns tend to be more algorithmic and frameworks more structural.

1. Restate project specification:
Make sure you are clear on the problem you are solving.
2. List candidate classes:
Brian storm a list of candidate classes.  While brian storming remember all ideas are potential good ideas.  Think fast and furiously first, ponder latter.

A good source of classes are the nouns in the project statement.  Be careful and stay on track.  Solve the current problem with an eye to what is to come.  Recall java classes represent real life objects.


3. Identify key classes:
• Identify critical, irrelevant and undecided classes
Divide the classes into the three groups.  Critical classes will probably appear in all the sources for classes. Critical classes also undergo change of state. Irrelevant classes are typically on outside or on the edge of the main system.
• Clarify project scope
Be sure to identify the scope of the project or be prepare to never finish.  Use/make a scope diagram; and this will help identify critical and irrelevant classes.
• Avoids phantoms and aliases
Phantom classes are typically without sufficient substance (belong to a class) or fall outside the domain.
• Distinguish Attributes from Classes
Attributes belong in a class and are not classes.  Typically they represent the class.
4. Specify classes:
Class can be specified by a diagram.  The diagram is a box with the name of the class high in the box below the name is  a horizontal line followed by a list of  method names.



This is very similar to an java interface.  I frequently use interfaces to implement this part of the design.  Also interfaces allowing me to continue programming without worrying about how I will implement a class.


5. Diagram class hierarchy
When I have to code programs with complicated class hierarchy structure I use diagrams. Objects are represented by boxes with the class name towards the top sometimes followed by a list of methods.  Composition of two objects is indicated by a line connecting the two object.  A small dark diamond near one of the objects indicates the encapsulating object. Inheritance is indicated by arrow from the derived object to the base object.

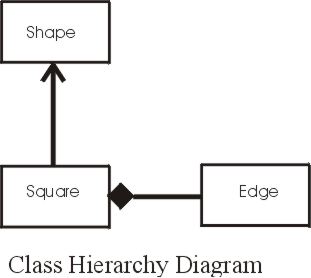

An example of diagramming the three classes; Shape, Square, and Edge.  Note a Square is a Shape and has four Edges.



Sometimes a  reference to another class is represented by an open diamond.


6. Evaluate classes and  hierarchy
The characteristics of a good class are:
• Clear unambiguous name that is a singular noun and begins with an uppercase letter
• The class has responsibilities (methods) and as knowledge (fields).
• The class collaborates with other classes and actively participates in the system


The class hierarchy and structure should be simple and not tightly coupled.

Use a classes with your use-cases.

Typical user interactions with the computer are:

• Question and answer
This is the old style input to the program.  Easy for the programmer to implement and not hard for the user to learn.  The inputs to the program are rather limited integers or strings and is very slow for the user.
• Direct manipulation
Example of direct manipulation are games and drawing software. For the user direct manipulation is fast and intuitive, but for programmer can be hard to implement.
• Menu selection
This type of input is typical for many software programs.  The interaction avoids error and offers choices.  For experience user the interface is slow.  The java programmer can easily implement menus. I also include AWT radial buttons.
• Forms
Typical form use are spread sheets and text field in java AWT.  I also include AWT sliders with forms.  For the user the data input is reduced and is easy to learn.  Also easy for the java programmer to implement.
• Command language
Example is unix operating system.  Hard for the user to learn, but once learned very flexible, powerful and fast.  Can also be incorporated into scripts further increasing the power of the user interaction.   Very easy for the programmer to implement.
• Special hardware interface
Examples are scanners in the groceries and touch screens.  The interface is very fast for the user, but is expensive and generally single task dedicated.  The programmer needs to at least learn a new api.
• Natural language
A example is search engines on the www. Very easy for the user to use but requires more typing and not always reliable.  Can be very difficult to program; at a minimum requires a parser.

The gui programers should always consider the user, his expertise and experience using computers.  The principles of designing a gui are:

• Friendliness
The gui should use terms and input techniques that are know to the users
• Consistency
Similar operations should produce similar results.  This helps to minimize memory requirement for the user and reduces surprise.
• Error response
The gui should be able to recover from user error.
• User guidance
The gui should provide feedback, meaning that the user should know that his commands have been accepted.  The gui visual presentation should be obvious to the user and instruct the user how to use the program.  For example context sensitive help.
• Beauty
No one likes to look at something ugly.

Because the gui presentation is so important to the program's success, it is important to get a mock-up gui to the client has soon as possible.  A mock-up gui is a program that opens up the window with the menus, text fields etc. but when the user makes a selection the program only output a text message to standard out.

If you are not familiar with the gui programming  refer to Objects have Class, chapter 14, Graphical User Interfaces.  Also study the java api at http://java.sun.com/j2se/1.4/docs/api/ in particular study the java.AWT and javax.swing packages.  Sun web sites have excellent tutorial at http://java.sun.com/docs/books/tutorial/ in particular the swing tutorial at http://java.sun.com/docs/books/tutorial/uiswing/index.html.

Now is the time to read the second project assignment.
